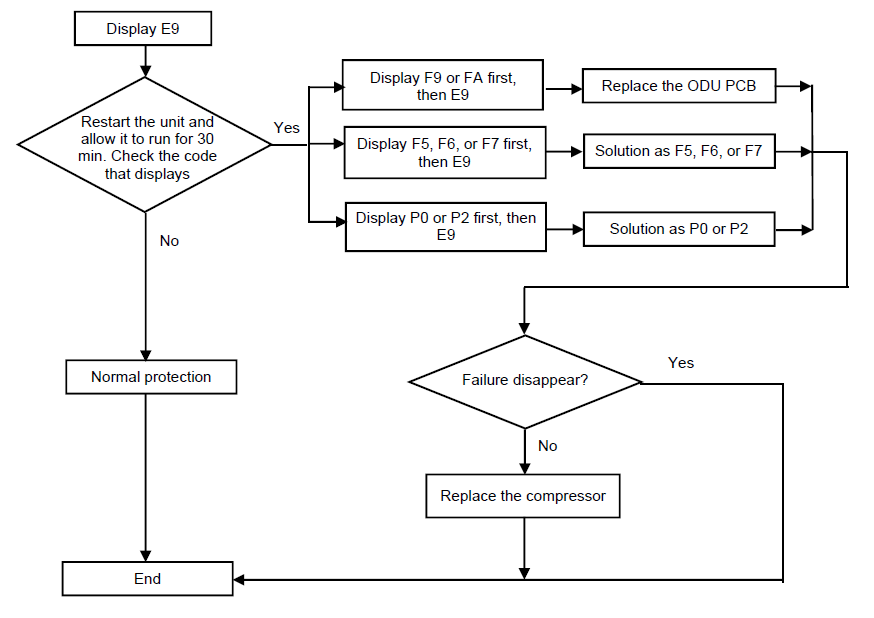

E9 Error Code: Outdoor Unit IPM or Compressor Drive FaultIf the IPM protection stops the unit six times in a row, the system displays error code &quot;E9&quot; and will not restart until the Power button is pressed.<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101220-48dcafdf-0bb9-4ec3-9a8e-f6473b7c0000-e9_code.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered">

This code indicates an outdoor unit IPM or compressor drive failure.

E9 Error Code
