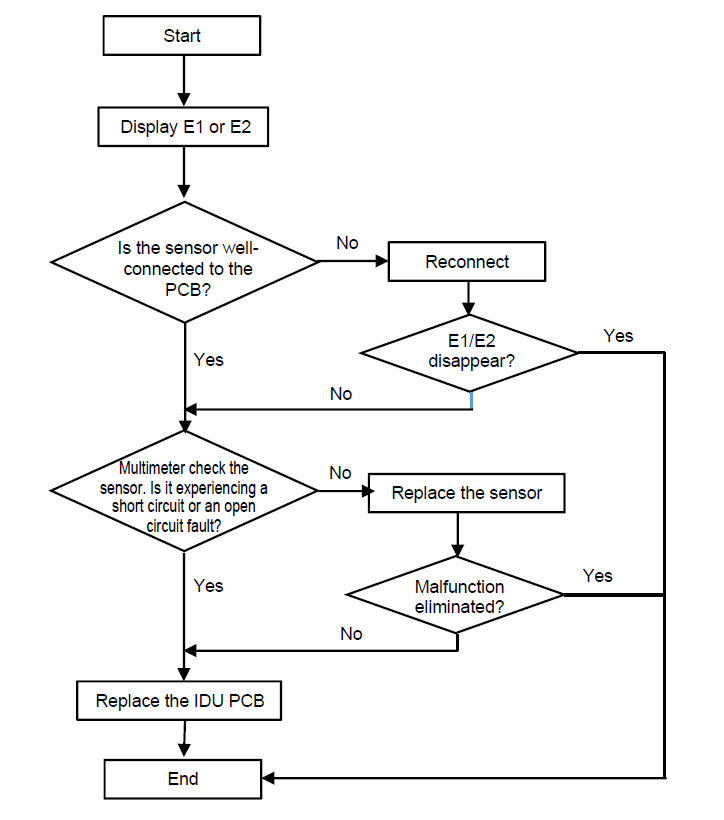

These codes indicate temperature sensor errors.<ul><li style="font-size: 16px;">E1 Error Code: Indoor Unit Room Temperature Sensor Error</li><li style="font-size: 16px;">E2 Error Code: Indoor Unit Coil Temperature Sensor Error<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101217-02f203ce-9657-4dec-8fa6-ff9ff5d26d0d-e1_e2_code.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered"> </li></ul>

These error codes indicate a failure of the indoor unit room temperature sensor or coil temperature sensor.

E1 or E2 Error Codes
