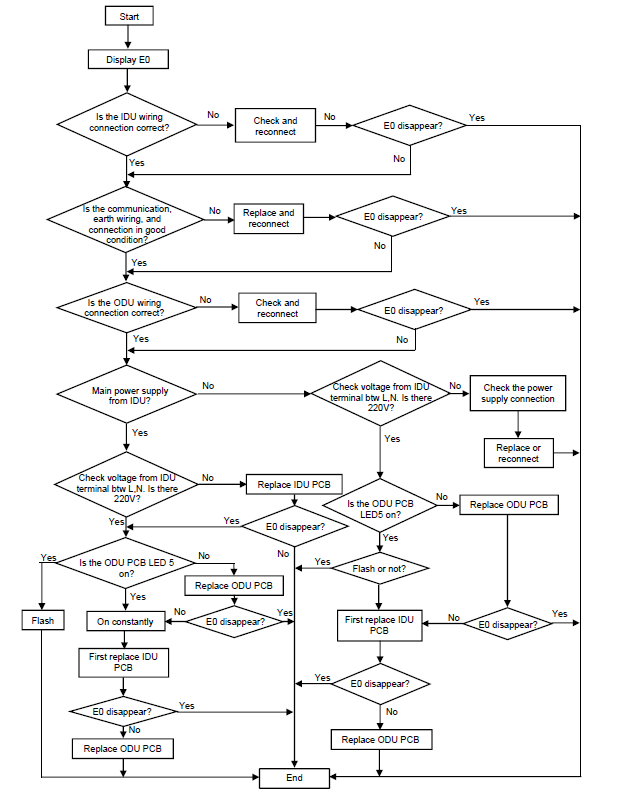

<h2 id="introduction"><u>Introduction</u></h2><p>The &quot;E0&quot; error code indicates an indoor unit and outdoor unit communication failure. The error code is for Diamante series systems.</p><h2 id="troubleshooting-diagram"><u>Troubleshooting Diagram</u></h2><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025111315-cc08e081-a390-44e4-8013-19c80a2a7a03-wyt17_e0_troubleshooting.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p>

Understand how to troubleshoot an E0 error code for Diamante series systems. Use the troubleshooting guide and graphics to help resolve the error codes.

Resolve an E0 error code for Diamante series systems
