Activate the Accelerated Cooling/Heating FunctionUpdated a day ago

This article explains how to activate the accelerated cooling and heating functions for Vertex Ducted Central Split (DYC-18) systems.

This function improves the dehumidification capacity in cooling mode and increases the unit capacity.

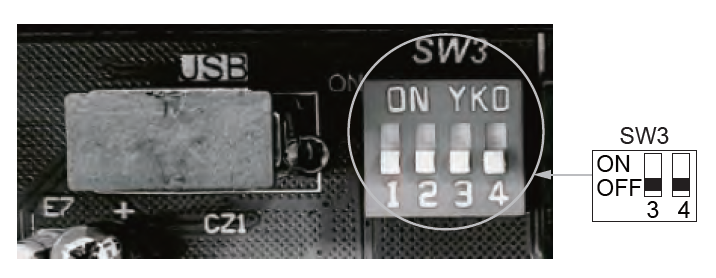

The DIP switches SW3-3 and SW3-4 are set to the OFF position by default. If DIP switch SW3-3 is set to the ON position, the target coil temperature will reduce in cooling mode. If DIP switch SW3-4 is set to the ON position, the target coil temperature will increase in heating mode.
