DYC060GCSI18RD Parts ListUpdated 8 hours ago
Introduction
This article includes parts lists for the indoor and outdoor units of the DYC060GCSI18RD system. This system is part of the Vertex (DYC-18) series central split.

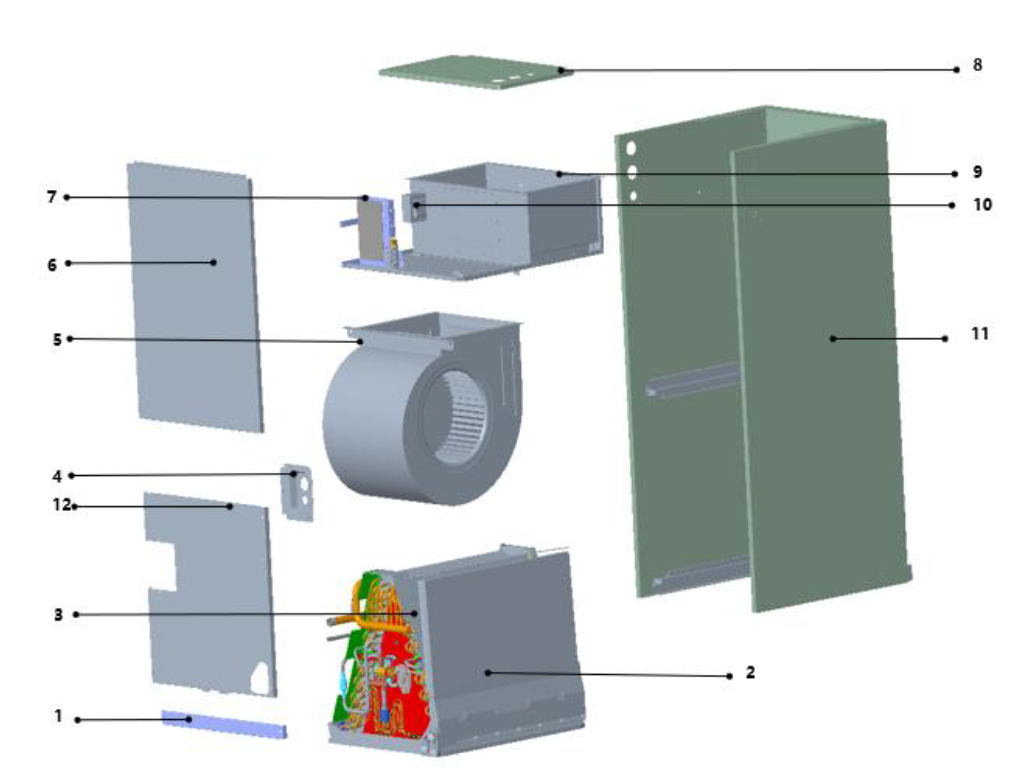

Indoor Unit
Model number: DC060GCSICDHRT
| No. | BOM Code | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 801239390088 | Filter cover plate | 1 | |
| 2 | 801235000123 | Drain pan assembly | 1 | |
| 3 | 801535000049 | Evaporator components | 1 | |
| 4 | 801235000073 | Pipe cover plate assembly | 1 | |
| 5 | 801200200040 | Volute casing with impeller | 1 | |
| 6 | 801243100007 | Upper side plate assembly | 1 | |
| 7 | 803344000321 | Indoor electric control box assembly | 1 | |
| 8 | 801235000131 | Control box cover assembly | 1 | |
| 9 | 801235000176 | Duct assembly | 1 | |
| 10 | 802311300001 | Transformers | 1 | |
| 11 | 801235000151 | Rear enclosure assembly | 1 | |
| 12 | 801243100008 | Down side plate assembly | 1 | |
| 13 | 802301800001 | Refrigerant leakage sensor | 1 | Not shown in the Explosion view |
| 14 | 802301500028 | Temperature sensor 1 | 1 | |
| 15 | 802300400181 | Temperature sensor 2 | 1 | |
| 16 | 802401700428 | DC motor | 1 |

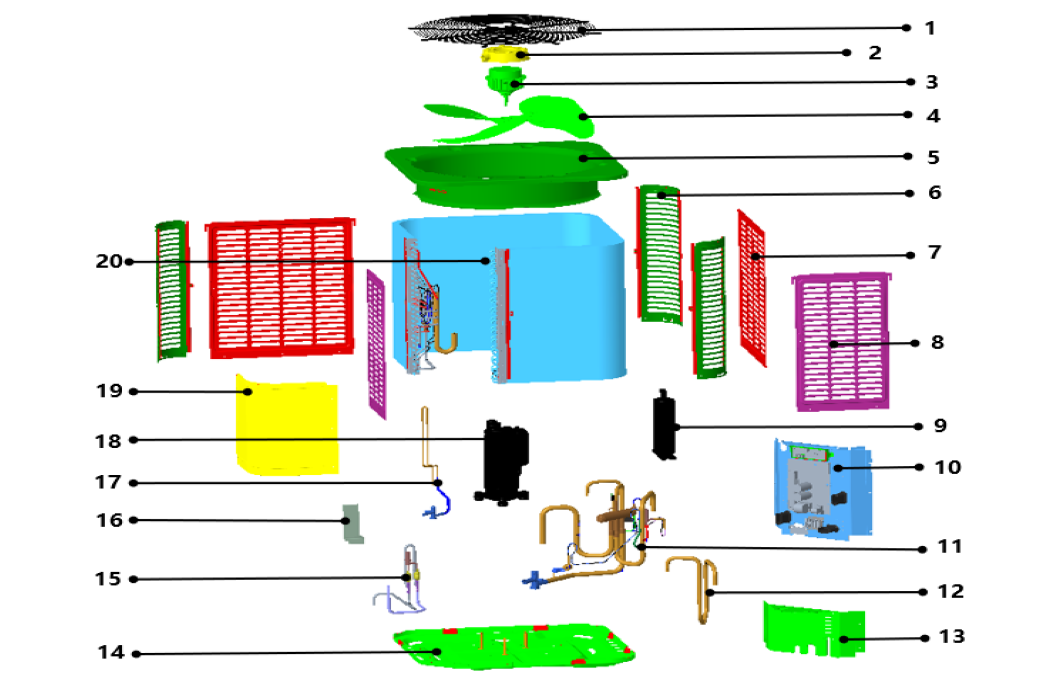

Outdoor Unit
Model number: YD4860GCSI18RD
| No. | BOM Code | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 802935000004 | Grill | 1 | |
| 2 | 801139090007 | DC motor mount | 1 | |
| 3 | 802401700429 | Outdoor motor | 1 | |
| 4 | 801200200055 | Axial-flow fan | 1 | |
| 5 | 801235000118 | Top cover assembly | 1 | |
| 6 | 801235000117 | Support board | 3 | |
| 7 | 801235000121 | Rear side panel | 2 | |
| 8 | 801235000122 | Right side panel | 2 | |
| 9 | 801605000009 | Accumulator | 1 | |
| 10 | 803335000017 | Electronic control board | 1 | |
| 11 | 801635000099 | 4-way valve assembly | 1 | |
| 12 | 801635000109 | Suction line assembly | 1 | |
| 13 | 801235000115 | Bottom side panel | 1 | |
| 14 | 801235000112 | Chassis assembly | 1 | |
| 15 | 801634000167 | Electronic expansion valve assemblies | 1 | |
| 16 | 801235000139 | Valve support plate | 1 | |
| 17 | 801635000114 | High pressure valve assembly | 1 | |
| 18 | 801403200021 | Compressor | 1 | |
| 19 | 801234000060 | Top panel | 1 | |
| 20 | 801535000046 | Condenser assembly | 1 | |
| 21 | 802301500050 | Temperature sensor (T7) | 1 | Not shown in the Explosion view |
| 22 | 802301600011 | Pressure sensor | 1 | |
| 23 | 802301500049 | Temperature sensor group (T3/T4/T5) | 1 | |
| 24 | 802405F00002 | High-pressure switch | 1 |
