DYC048GCSI18RD Parts ListUpdated 13 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the DYC048GCSI18RD system. This system is part of the Vertex Ducted Central Split (DYC-18) series.

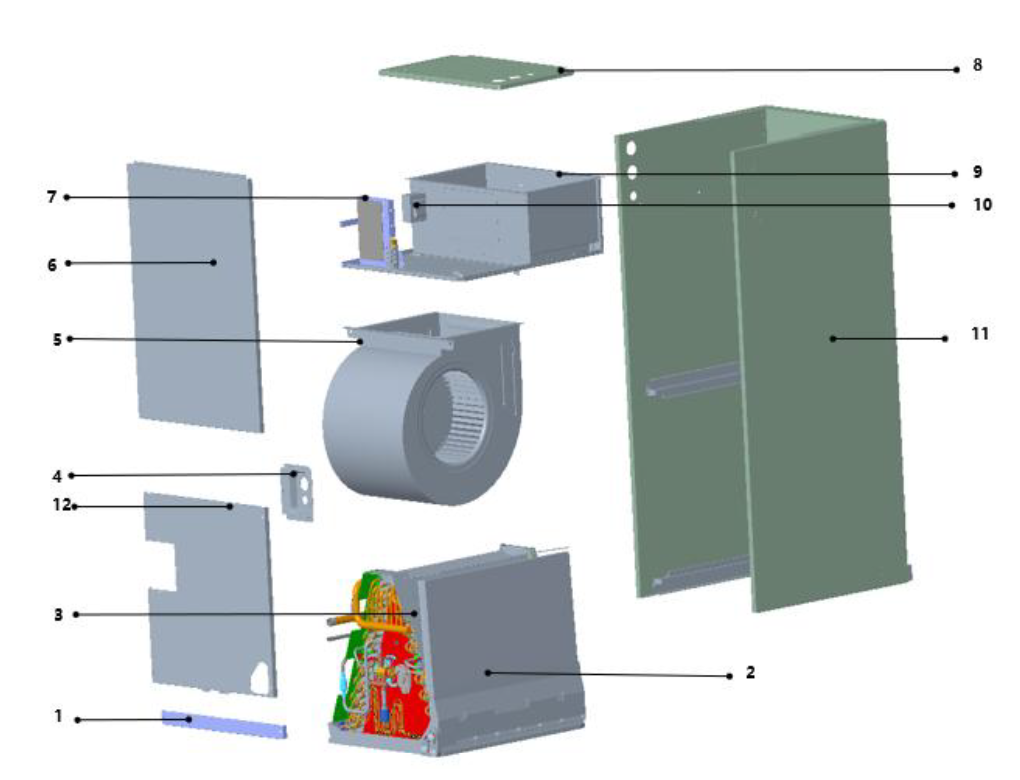

Indoor Unit
Model number: DC048GCSICDHRT
| No. | BOM Code | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 801239390088 | Filter cover plate | 1 | |
| 2 | 801235000123 | Drain pan assembly | 1 | |
| 3 | 801535000049 | Evaporator components | 1 | |
| 4 | 801235000073 | Pipe cover plate assembly | 1 | |
| 5 | 801200200040 | Volute casing with impeller | 1 | |
| 6 | 801243100007 | Upper side plate assembly | 1 | |
| 7 | 803344000321 | Indoor electric control box assembly | 1 | |
| 8 | 801235000131 | Control box cover assembly | 1 | |
| 9 | 801235000176 | Duct assembly | 1 | |
| 10 | 802311300001 | Transformers | 1 | |
| 11 | 801235000151 | Rear enclosure assembly | 1 | |
| 12 | 801243100008 | Down side plate assembly | 1 | |
| 13 | 802301800001 | Refrigerant leakage sensor | 1 | Not shown in the Explosion view |
| 14 | 802301500028 | Temperature sensor 1 | 1 | |
| 15 | 802300400181 | Temperature sensor 2 | 1 | |
| 16 | 802401700428 | DC motor | 1 |

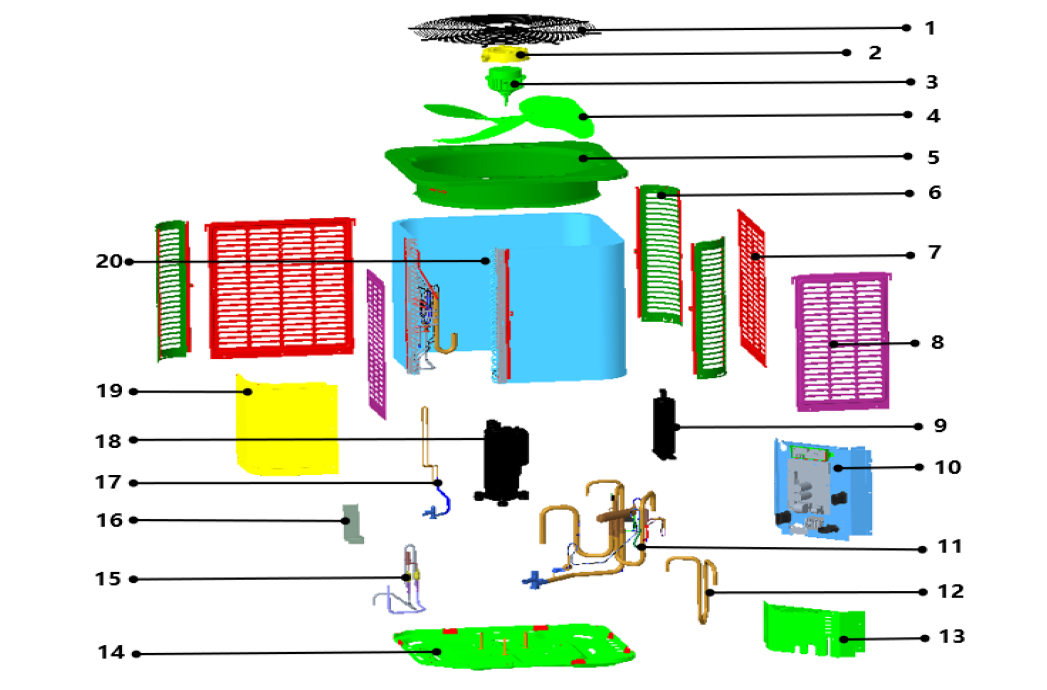

Outdoor Unit
Model number: YD4860GCSI18RD
| No. | BOM Code | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 802935000004 | Grill | 1 | |
| 2 | 801139090007 | DC motor mount | 1 | |
| 3 | 802401700429 | Outdoor motor | 1 | |
| 4 | 801200200055 | Axial-flow fan | 1 | |
| 5 | 801235000118 | Top cover assembly | 1 | |
| 6 | 801235000117 | Support board | 3 | |
| 7 | 801235000121 | Rear side panel | 2 | |
| 8 | 801235000122 | Right side panel | 2 | |
| 9 | 801605000009 | Accumulator | 1 | |
| 10 | 803335000017 | Electronic control board | 1 | |
| 11 | 801635000099 | 4-way valve assembly | 1 | |
| 12 | 801635000109 | Suction line assembly | 1 | |
| 13 | 801235000115 | Bottom side panel | 1 | |
| 14 | 801235000112 | Chassis assembly | 1 | |
| 15 | 801634000167 | Electronic expansion valve assemblies | 1 | |
| 16 | 801235000139 | Valve support plate | 1 | |
| 17 | 801635000114 | High pressure valve assembly | 1 | |
| 18 | 801403200021 | Compressor | 1 | |
| 19 | 801234000060 | Top panel | 1 | |
| 20 | 801535000046 | Condenser assembly | 1 | |
| 21 | 802301500050 | Temperature sensor (T7) | 1 | Not shown in the Explosion view |
| 22 | 802301600011 | Pressure sensor | 1 | |
| 23 | 802301500049 | Temperature sensor group (T3/T4/T5) | 1 | |
| 24 | 802405F00002 | High-pressure switch | 1 |
