DYC036GCSI18RD Parts ListUpdated 8 hours ago
Introduction
This article includes parts lists for the indoor and outdoor units of the DYC036GCSI18RD system. This system is part of the Vertex (DYC-18) series central split.

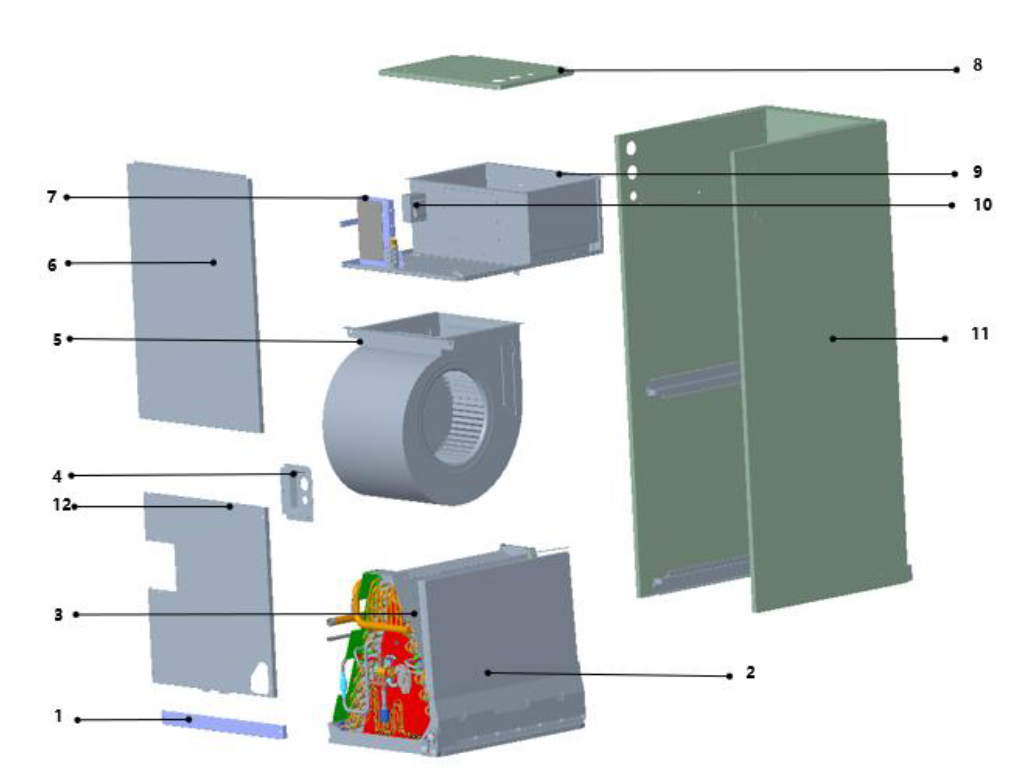

Indoor Unit
Model number: DC036GCSICDHRT
| No. | BOM Code | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 801233590166 | Filter cover plate | 1 | |
| 2 | 801134590006 | Drain pan assembly | 1 | |
| 3 | 801535000050 | Evaporator components | 1 | |
| 4 | 801235000073 | Pipe cover plate assembly | 1 | |
| 5 | 801200200040 | Volute casing with impeller | 1 | |
| 6 | 801235000146 | Upper side plate assembly | 1 | |
| 7 | 803344000321 | Indoor electric control box assembly | 1 | |
| 8 | 801235000148 | Control box cover assembly | 1 | |
| 9 | 801235000172 | Duct assembly | 1 | |
| 10 | 802311300001 | Transformers | 1 | |
| 11 | 801235000155 | Rear enclosure assembly | 1 | |
| 12 | 802301800001 | Refrigerant leakage sensor | 1 | Not shown in the Explosion view |
| 13 | 802301500028 | Temperature sensor 1 | 1 | |
| 14 | 802300400181 | Temperature sensor 2 | 1 | |
| 15 | 802401700430 | DC motor | 1 |

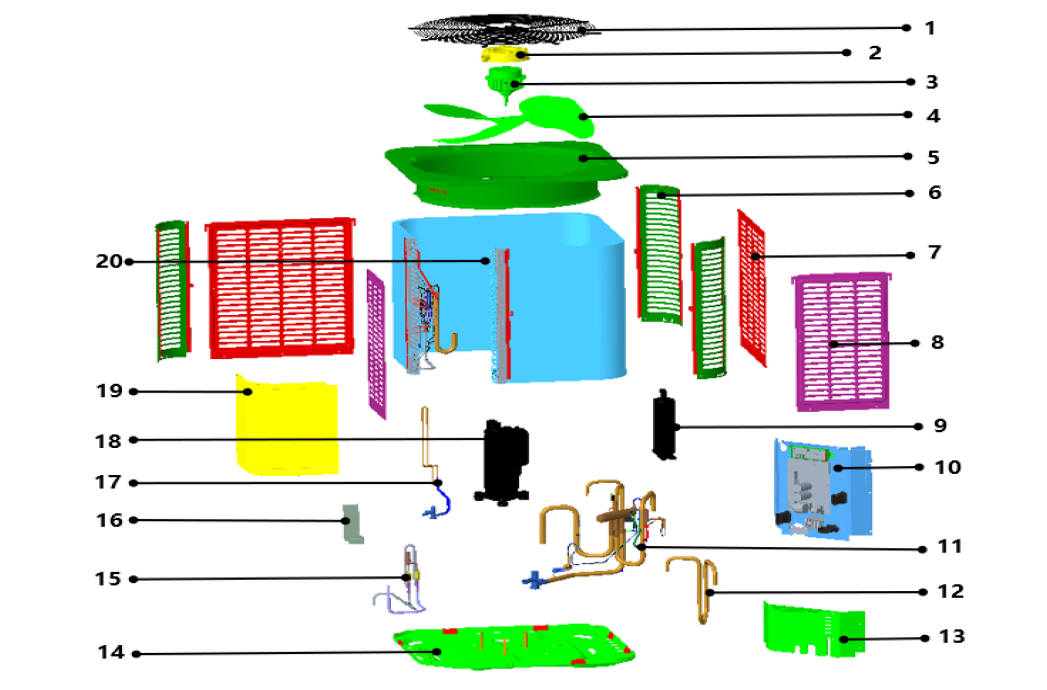

Outdoor Unit
Model number: YD2436GCSI18RD
| No. | BOM Code | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 802935000004 | Grill | 1 | |
| 2 | 801139090007 | DC motor mount | 1 | |
| 3 | 802401700429 | Outdoor motor | 1 | |
| 4 | 801200200055 | Axial-flow fan | 1 | |
| 5 | 801235000118 | Top cover assembly | 1 | |
| 6 | 801235000137 | Support board | 3 | |
| 7 | 801235000135 | Rear side panel | 2 | |
| 8 | 801235000136 | Right side panel | 2 | |
| 9 | 801605000010 | Accumulator | 1 | |
| 10 | 803335000019 | Electronic control board components | 1 | |
| 801306300007 | Main control board | 1 | ||
| 801334000003 | Display board | 1 | ||
| 11 | 801635000123 | 4-way valve assembly | 1 | |
| 12 | 801635000120 | Suction line assembly | 1 | |
| 13 | 801235000138 | Bottom side panel | 1 | |
| 14 | 801235000112 | Chassis assembly | 1 | |
| 15 | 801634000167 | Electronic expansion valve assemblies | 1 | |
| 16 | 801235000139 | Valve support plate | 1 | |
| 17 | 801635000129 | High pressure valve assembly | 1 | |
| 18 | 801403200022 | Compressor | 1 | |
| 19 | 801234000060 | Top panel | 1 | |
| 20 | 801535000051 | Condenser assembly | 1 | |
| 21 | 802301500050 | Temperature sensor (T7) | 1 | Not shown in the Explosion view |
| 22 | 802301600011 | Pressure sensor | 1 | |
| 23 | 802301500049 | Temperature sensor group (T3/T4/T5) | 1 | |
| 24 | 802405F00002 | High-pressure switch | 1 |
