Activate Heat mode using Diamante Pro Series remotesUpdated 3 hours ago

Introduction

Understand how to use your Diamante Pro Series remote to activate the system’s Heat mode.

Most Diamante Pro Series remotes have manual dip-switches below the battery compartment to control the heat setting. Adjust the switch position to change the control type and unit of temperature.

Steps

Follow these steps to activate the system’s Heat mode using the remote controller:

1. Set the switch to the “Heat” position.
2. Remove the batteries from the remote controller.
3. Wait at least 30 seconds.
4. Reinsert the batteries into the remote controller.

Note: If the switch is already set to the “Heat” position and the system is not entering Heat mode, remove the batteries and reinsert them after 30 seconds. Then try to activate Heat mode again.

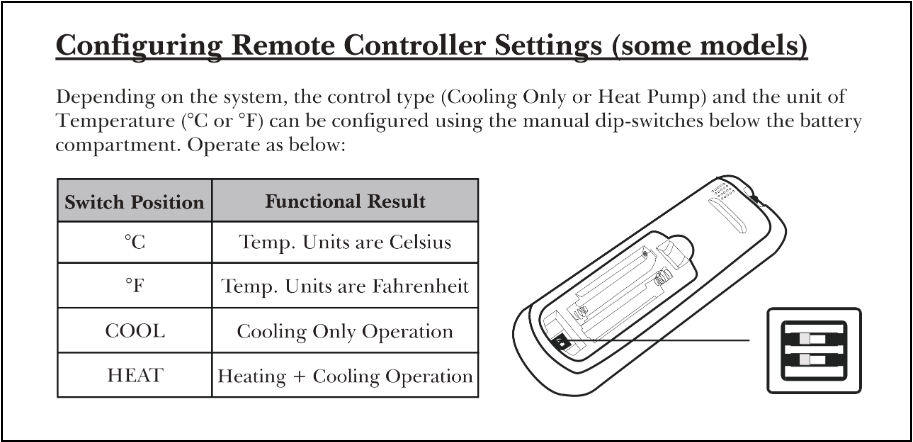

Use the diagram below to help you properly configure the remote controller settings:
