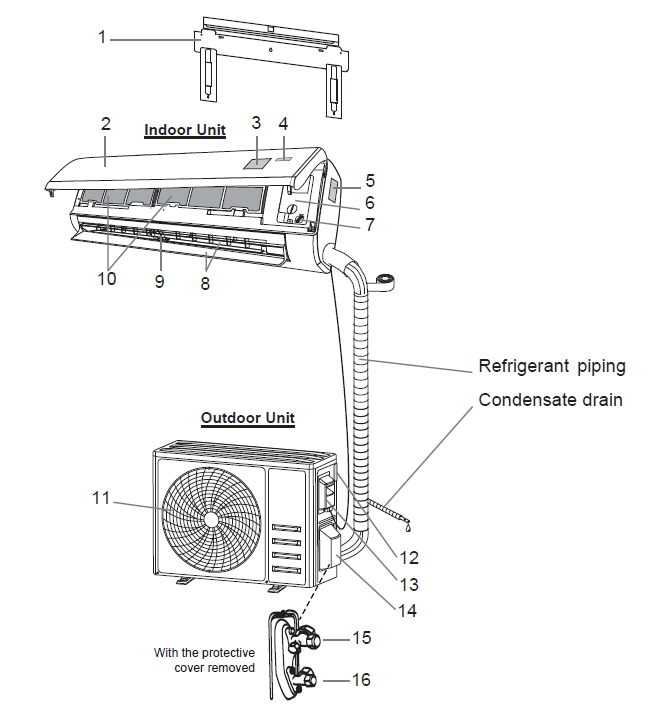

<h2 id="introduction"><u>Introduction</u></h2><p>The&#xA0;<a href="https://www.pioneerminisplit.com/collections/diamante-essenza-high-wall-series" target="_blank" rel="noopener noreferrer">Diamante Essenza (WYT-17)</a> is a high-efficiency, entry-level ductless mini split system designed to deliver reliable year-round heating and cooling with an average 17-SEER2 rating.&#xA0;</p><p>Ideal for bedrooms, home offices, and small spaces, it features whisper-quiet operation, a compact wall-mounted indoor unit, and a factory pre-charged outdoor condenser with R32 refrigerant.</p><p>Inverter technology ensures consistent comfort while reducing energy waste, and maintenance is simple with front-access washable filters. The system includes a 16-foot lineset, drain hose, remote control, and essential installation components.&#xA0;</p><p>For more information, see this <a href="https://www.pdhvac.com/site/dl/wyt17/WYT17-BROC-2501.pdf" target="_blank" rel="noopener noreferrer">technical brochure</a>. &#xA0;</p><h2 id="indoor-units"><u>Indoor Units</u></h2><ul><li>WT012ALUI17HLD</li><li>WT012GLUI17HLD</li><li>WT018GLUI17HLD</li><li>WT024GLUI17HLD</li><li>WT036GLUI17HLD</li></ul><h2 id="outdoor-units"><u>Outdoor Units</u></h2><ul><li>YN012ALUI17RPD</li><li>YN012GLUI17RPD</li><li>YN018GLUI17RPD</li><li>YN024GLUI17RPD</li><li>YN036GLUI17RPD</li></ul>

The Diamante Essenza is a high-efficiency, entry-level ductless mini split system designed to deliver reliable year-round heating and cooling with an average 17-SEER rating.

Diamante Essenza (WYT-17) Overview
