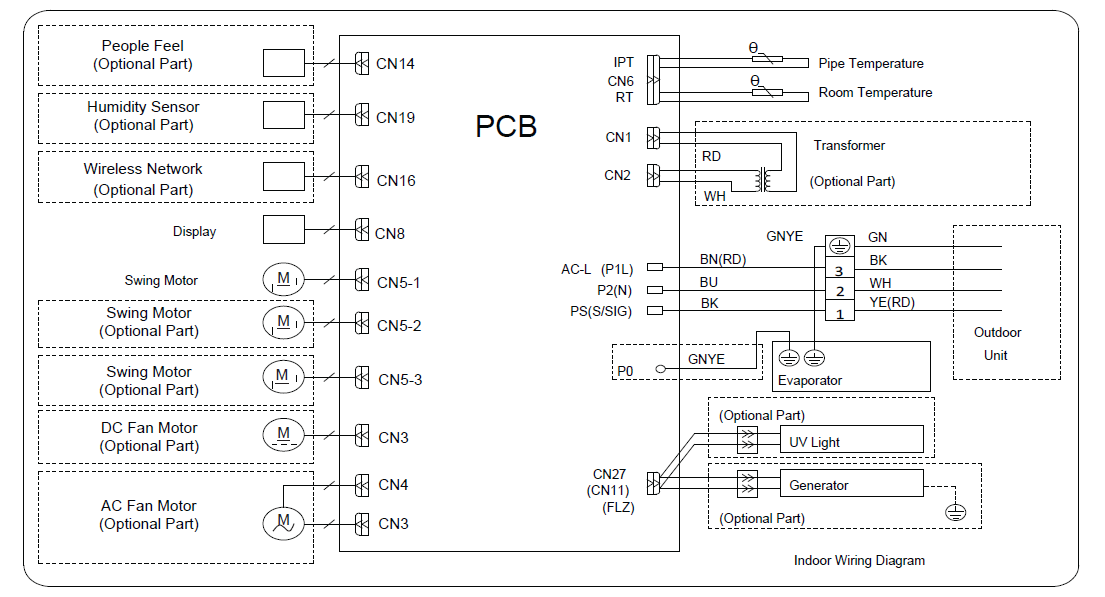

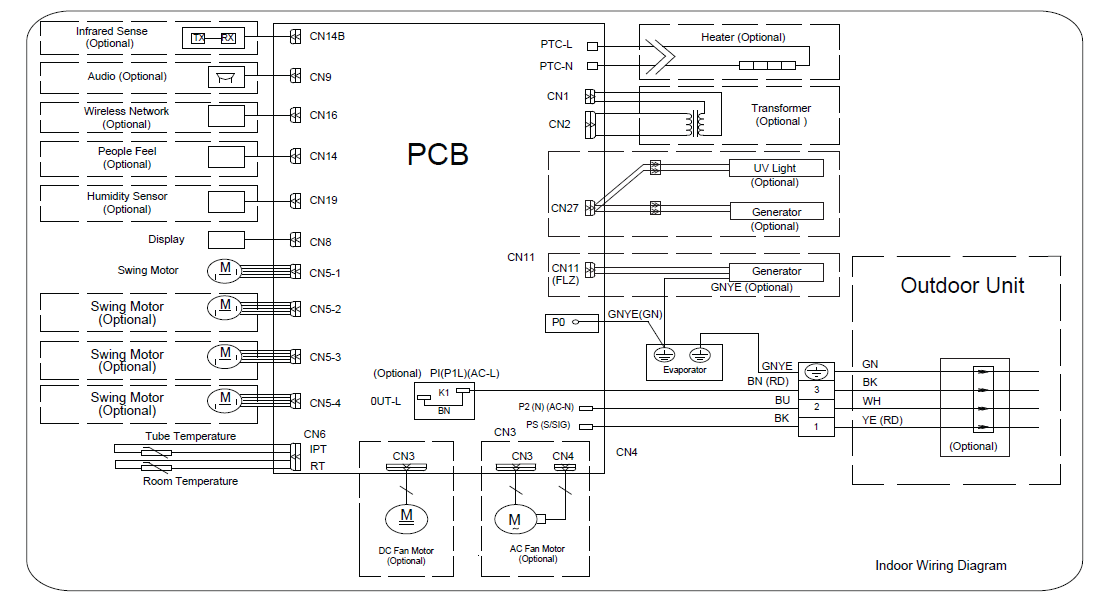

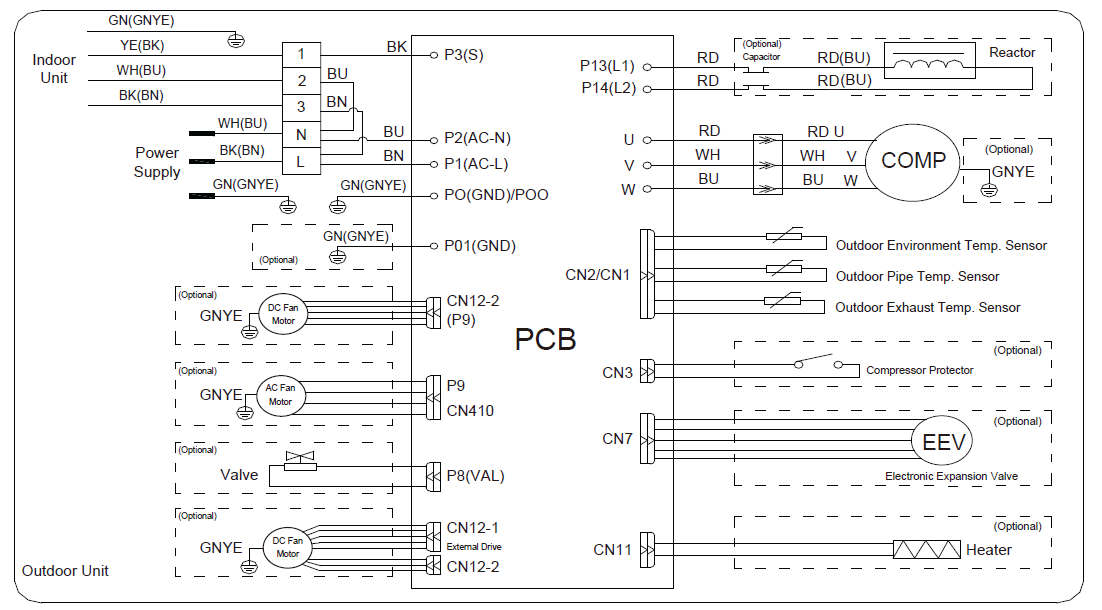

<h2 id="introduction"><u>Introduction</u></h2><p>This article provides control board wiring diagrams for Diamante Essenza (WYT-17) systems. This article includes control board wiring diagrams for the indoor and outdoor units.&#xA0;</p><h2 id="indoor-units"><u>Indoor Units</u></h2><p><strong>WT012ALUI17HLD | WT012GLUI17HLD | WT018GLUI17HLD | &#xA0;WT024GLUI17HLD</strong><strong><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120514-0e4f8222-5ca3-404b-b462-7fa9f90a542a-wyt17_control_board_wiring_diagram_wt12al_wt12gl_wt18_wt24.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></strong><strong>WT036GLUI17HLD</strong><strong><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120514-225f795f-7abd-43e3-adc1-83229d68ef1c-wyt17_control_board_wiring_diagram_wt36.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></strong></p><h2 id="outdoor-units"><u>Outdoor Units</u></h2><p><strong>YN012ALUI17RPD</strong><strong><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120514-a13cb52b-7bc3-416d-bbdd-a088fa16bc6a-wyt17_control_board_wiring_diagram_yn12.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></strong><strong>YN018GLUI17RPD | YN024GLUI17RPD | &#xA0;YN036GLUI17RPD</strong><strong><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120514-aa68edfc-5337-40ef-8a69-f55d2332feb1-wyt17_control_board_wiring_diagram_yn18_yn24_yn36.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></strong><br></p>

This article provides control board wiring diagrams for Diamante Essenza systems.

Control Board Wiring Diagrams for Diamante Essenza (WYT-17) Systems
