Quantum Ultra Ceiling Cassette (CYT-24) OverviewUpdated 2 days ago
Introduction
The Quantum Ultra Ceiling Cassette (CYT-24) ductless mini split system is designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible.
This series, which has an average 24-SEER2 rating, are factory-precharged with environmentally-friendly R-454B refrigerant.
8-Way, 360° Airflow
This series offers omni-directional air output, ensuring the conditioned air proportionally reaches all four corners of the room. The innovative design features four sides and four corners of airflow delivery.

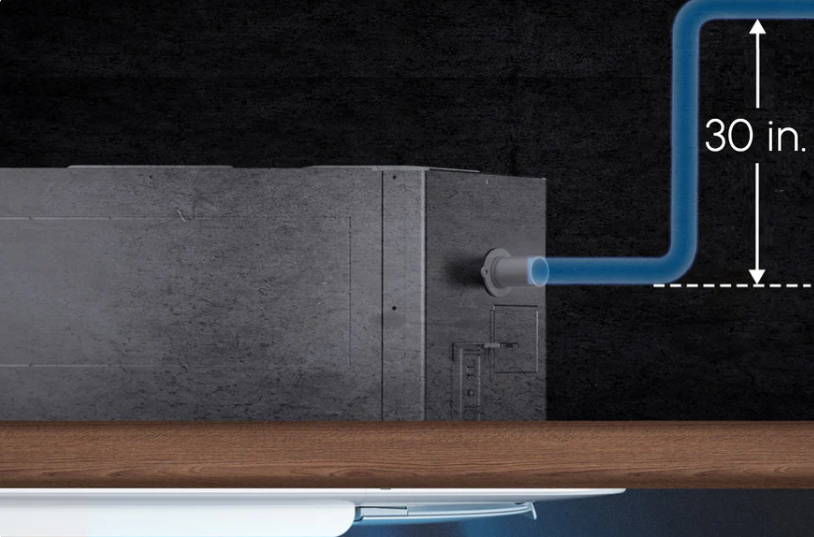

Built-In Drain Pump
Every cassette system includes a condensate pump that is capable of lifting drainage water up to 30 inches (762 mm). This provides the user more flexibility for routing the condensate water. The pump can easily be disabled if the gravity drain is desired.
Fresh Air Intake
This series offers a provision of fresh-air intake via an optional reserved airflow port. New outdoor air can be easily brought inside to replace stale room air.
Intelligent Air Throw
With the wide operating angle of the airflow louver, this series is able to drape the room with a satisfying breeze in Cooling mode, and wrap the area with warmth in Heating mode.
Full System Model Numbers

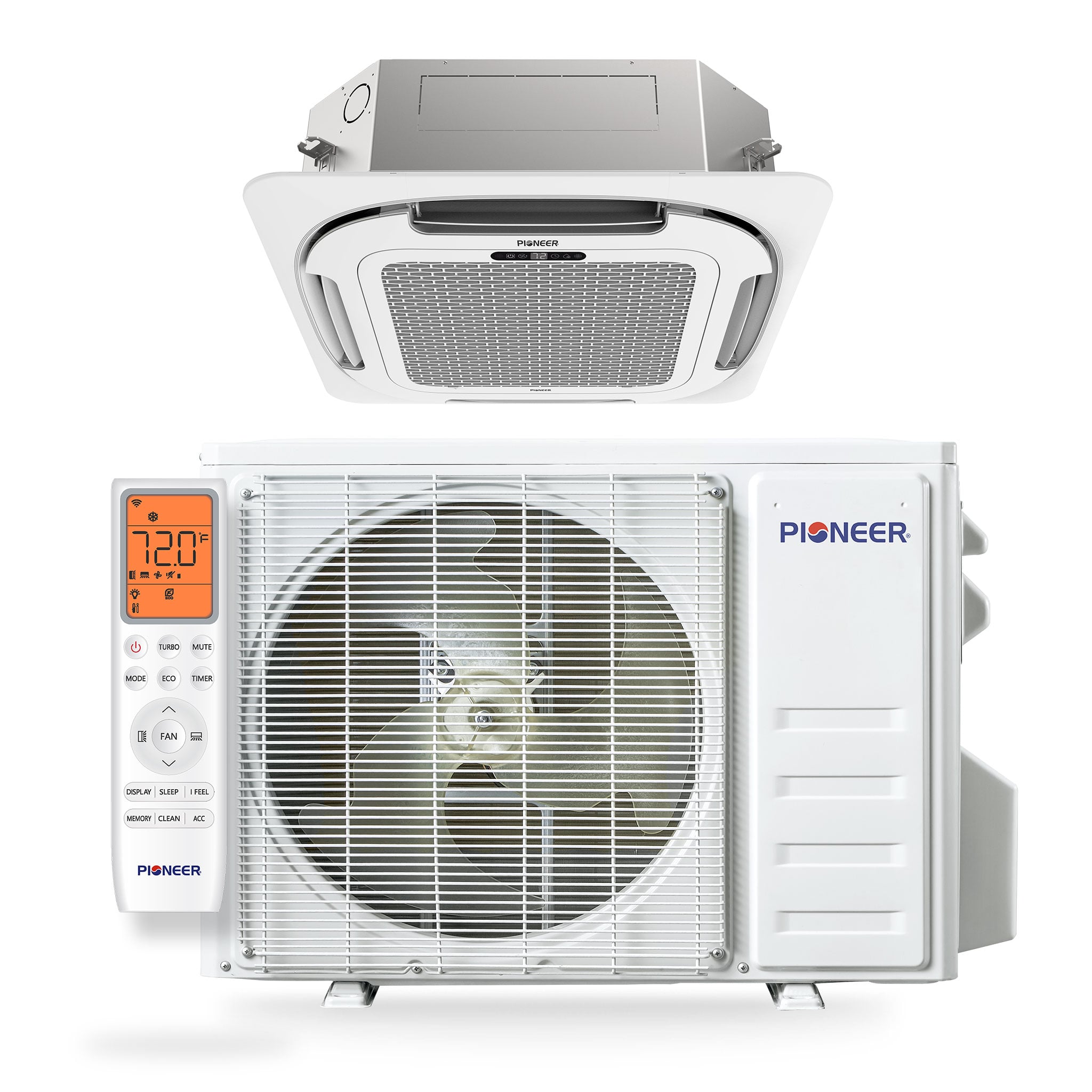

CYT009GLSI24RL, CYT012GLSI24RL, CYT018GLSI24RL, and CYT024GLSI24RL
Indoor Units
CT009GLSILCFHG, CT012GLSILCFHG, CT018GLSILCFHG, and CT024GLSILSFHG
Outdoor Units
YN009GLSI24RPG, YN012GLSI24RPG, YN018GLSI24RPG, and YN024GLSI24RPG
For more information, see this technical brochure.
System Components
These illustrations are for explanatory purposes. The actual shape of the indoor unit may be slightly different. The shape shall prevail.
No. | Description |
|---|---|
| 1 | Decorative panel |
| 2 | Cassette air handler body |
| 3 | Service bundle connections |
| 4 | Air supply outlets |
| 5 | Air return inlet |
| 6 | Filter access panel |
| 7 | Controller signal receiver |
| 8 | LED display |
| 9 | Cassette suspension brackets |
| 10 | Interior condensate pump |
| 11 | Air outlet grille |
| 12 | Outdoor unit nameplate |
| 13 | Terminal block cover |
| 14 | Valve protection cover |
| 15 | Gas (Suction) line valve |
| 16 | Liquid line valve |
Accessories & Components
The system comes with the following accessories. This a general list of the package contents. The included items may vary slightly depending on the model.
Use all of the installation parts and accessories to successfully install the system.
Note: Items with an asterisk * may be sold separately and are sometimes supplied by the installer. Therefore, some items could differ in appearance, shape, or length, depending on the particular installation.
| Quantity | Name | Appearance |
|---|---|---|
| 1 | Installation & User manual |  |
| 1 | Warranty card |  |
| 1 | Communication/Signal cable* |  |
| 1 | Insulated copper pipe* |  |
| 1 | Remote controller |  |
| 1 | Remote controller holder |  |
| 2 | Remote controller batteries |  |
| 1 | Indoor unit mounting plate (Boxed separately in some cases) |  |
| 1 | Drain pipe assembly |  |
| 1 | Plastic drain joint plug for the outdoor unit (Use only for wall-mounted condensers) |  |
| 1 | Condensate drain hose* |  |
| 1 | Wrapping tape* |  |
| 1 | Wall-hole packing sealant* |  |
| 1 | Wall sleeve* |  |
| 1 | Allen wrench for opening service valves |  |
