Dimensions & Weights for Quantum Ultra 8-Way Ceiling Cassette (CYT-24) SystemsUpdated 15 days ago
This article provides the dimensions and weights for Quantum Ultra 8-Way Ceiling Cassette (CYT-24) systems.
Full System Model Numbers
Indoor Units
| Indoor Units | |||
| Models | Width x Depth x Height (inches/mm) | ||
| W | D | H | |

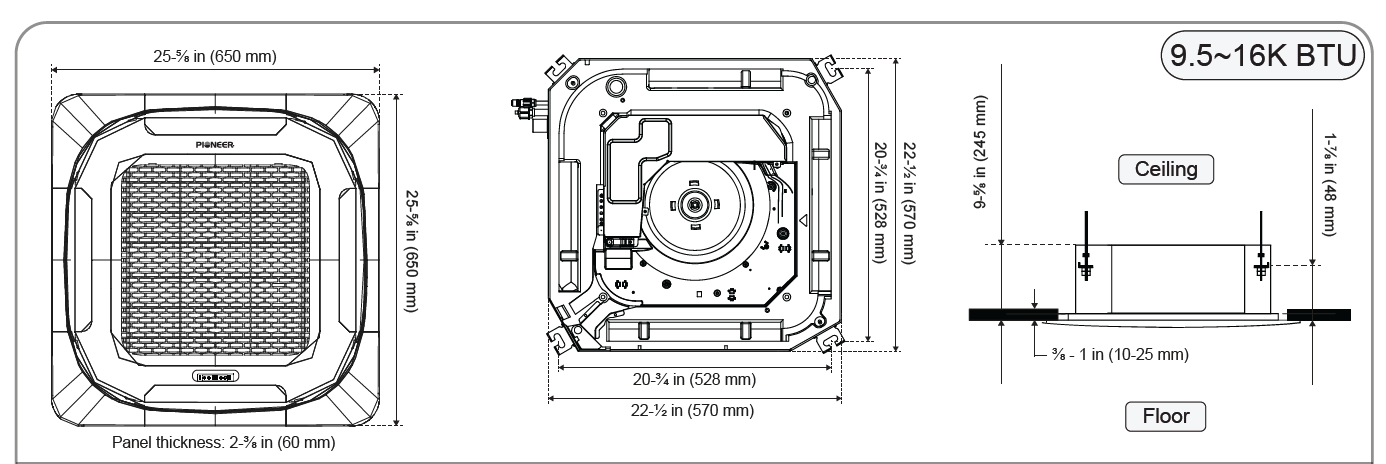

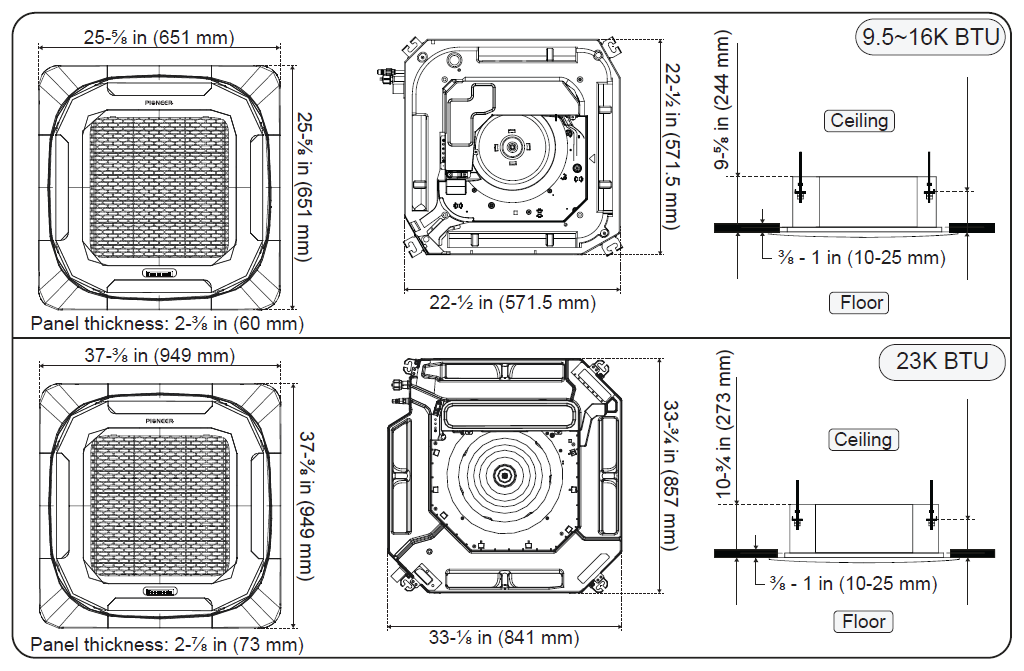

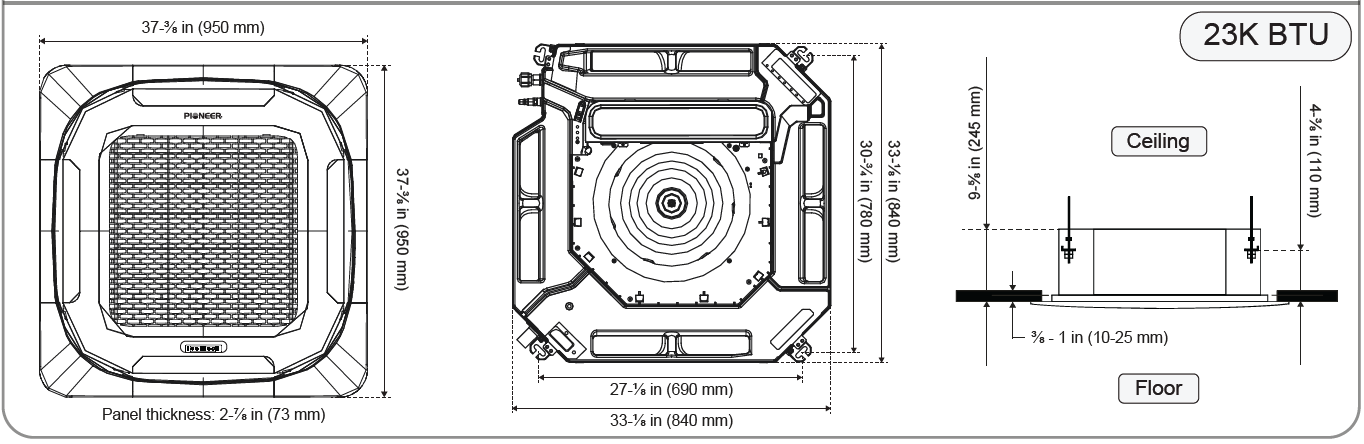

| CT009GLSILCFHG CT012GLSILCFHG CT018GLSILCFHG | 22-1/2 in | 22-1/2 in | 9-5/8 in |
| 571.5 mm | 571.5 mm | 244 mm | |
| Indoor Units | ||
| Models | Weights (lbs/kg) | |
| Net Unit | Shipping | |
| CT009GLSILCFHG CT012GLSILCFHG CT018GLSILCFHG | 32 lbs | 38.6 lbs |
| 14.5 kg | 17.5 kg | |
| Panel Grilles | |||
| Models | Width x Depth x Height (inches/mm) | ||
| W | D | H | |
| CT009GLSILCFHG CT012GLSILCFHG CT018GLSILCFHG | 25-5/8 in | 25-5/8 in | 2-3/8 in |
| 651 mm | 651 mm | 60 mm | |
| Panel Grilles | ||
| Models | Weights (lbs/kg) | |
| Net Unit | Shipping | |
| CT009GLSILCFHG CT012GLSILCFHG CT018GLSILCFHG | 6 lbs | 9.5 lbs |
| 2.7 kg | 4.3 kg | |
| Indoor Unit | |||
| Model | Width x Depth x Height (inches/mm) | ||
| W | D | H | |
| CT024GLSILSFHG | 33-1/8 in | 33-3/4 in | 10-3/4 in |
| 841 mm | 857 mm | 273 mm | |
| Indoor Unit | ||
| Model | Weight (lbs/kg) | |
| Net Unit | Shipping | |
| CT024GLSILSFHG | 51.8 lbs | 59.5 lbs |
| 23.5 kg | 27 kg | |
| Panel Grille | |||
| Model | Width x Depth x Height (inches/mm) | ||
| W | D | H | |
| CT024GLSILSFHG | 37-3/8 in | 37-3/8 in | 2-7/8 in |
| 949 mm | 949 mm | 73 mm | |
| Panel Grille | ||
| Model | Weight (lbs/kg) | |
| Net Unit | Shipping | |
| CT024GLSILSFHG | 13.2 lbs | 19.8 lbs |
| 6 kg | 9 kg | |
Outdoor Units

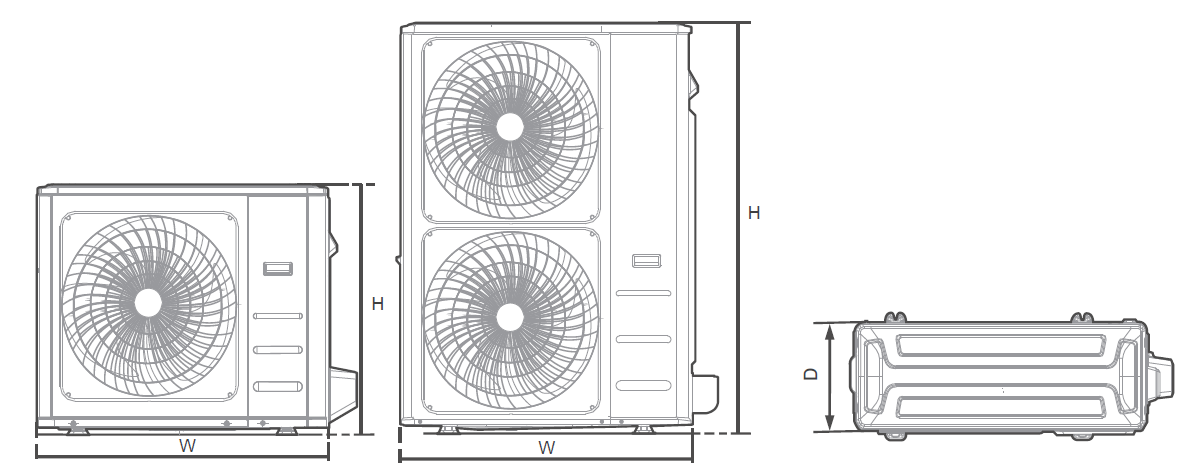

| Outdoor Units | ||||||||
| Models | Dimensions (inches/mm) | |||||||
| D | E | F | G | H | I | J | K | |
| YN009GLSI24RPG YN012GLSI24RPG | 28-3/4 in | 21-1/2 in | 10 in | 17-1/8 in | 12 in | 11-1/4 in | 1-7/8 in | 2-1/4 in |
| 730 mm | 546 mm | 253 mm | 434 mm | 305 mm | 285 mm | 48 mm | 58 mm | |
| YN018GLSI24RPG | 33-1/4 in | 27-1/2 in | 12-7/8 in | 23-1/8 in | 14-3/4 in | 13-3/4 in | 2-1/8 in | 2-1/4 in |
| 845 mm | 699 mm | 326 mm | 586 mm | 375 mm | 348 mm | 55 mm | 58 mm | |
| YN024GLSI24RPG | 35-7/8 in | 31-5/8 in | 14-1/8 in | 23-7/8 in | 16-5/8 in | 15-3/8 in | 2-3/8 in | 2-1/2 in |
| 910 mm | 803 mm | 359 mm | 607 mm | 421 mm | 390 mm | 60 mm | 63 mm | |
| Outdoor Units | ||
| Models | Weights (lbs/kg) | |
| Net Unit | Shipping | |
| YN009GLSI24RPG | 52.7 lbs | 57.1 lbs |
| 23.9 kg | 25.9 kg | |
| YN012GLSI24RPG | 58.4 lbs | 65 lbs |
| 26.5 kg | 29.5 kg | |
| YN018GLSI24RPG | 90.4 lbs | 97 lbs |
| 41 kg | 44 kg | |
| YN024GLSI24RPG | 104.7 lbs | 119 lbs |
| 47.5 kg | 54 kg | |
