CYT024GLSI24RL Parts ListUpdated 22 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the CYT024GLSI24RL system. This system is part of the Quantum Ultra Ceiling Cassette (CYT-24) series.
Indoor Unit
Model number: CT024GLSILSFHG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 45901-000103 | Left & right surround plate assembly | 1 | |
| 2 | 45901-000089 | Front coaming assembly | 1 | |
| 3 | 45004-000537 | Base | 1 | |
| 4 | 45901-000091 | Back surround plate | 1 | |
| 5 | 45901-000103 | Left & right surround plate assembly | 1 | |
| 6 | 45901-000141 | Outlet tube sealing plate assembly | 1 | |
| 7 | 45004-000325 | Base foam | 1 | |
| 8 | M0401-110001 | Water pump component | 1 | |
| 9 | 25001-000429 | Indoor motor | 1 | |
| 10 | 45009-000076 | Centrifugal fan | 1 | |
| 11 | 95003-001908 | Evaporator | 1 | |
| 12 | 46301-000171 | Evaporator hook | 2 | |
| 13 | 95003-002186 | Evaporator | 1 | |
| 14 | 45011-000120 | Water pan assembly | 1 | |
| 15 | 45008-000336 | Lead flow circle | 1 | |
| 16 | 11501-100018 | Relay | 1 | |
| 17 | 11304-100063 | Terminal | 1 | |
| 18 | 35004-001882 | Main PCB | 1 | |
| 19 | 45006-001734 | Electrical box | 1 | |
| 20 | / | / | 1 | |
| 21 | 35001-000374 | Electronic box cover | 1 |

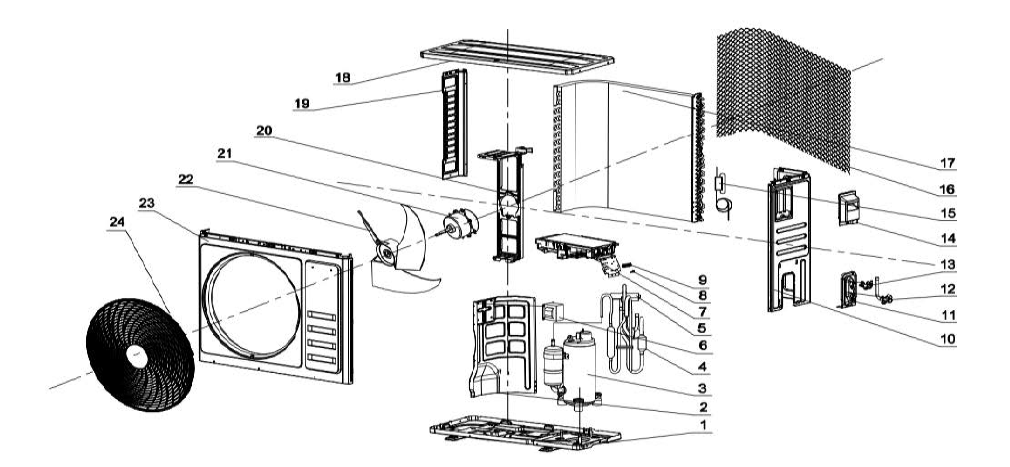

Outdoor Unit
Model number: YN024GLSI24RPG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000628 | Base | 1 | |
| 2 | 41208-001049 | Partition plate | 1 | |
| 3 | 92014-000814 | Compressor | 1 | |
| 4 | 92007-021874 | 4-way valve assembly | 1 | |
| 5 | 92008-000495 | 4-way valve | 1 | |
| 6 | / | Reactor | 1 | |
| 7 | 31201-003337 | Outdoor control assembly | 1 | |
| 8 | 42001-000038 | Clamp 1 | 1 | |
| 42001-000036 | Clamp 2 | 1 | ||
| 9 | 11304-100117 | Terminal | 1 | |
| 10 | 41205-000219 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-005289 | 3-way valve | 1 | |
| 13 | 92007-007583 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-020737 | Capillary assembly | 1 | |
| 16 | 42011-000419 | Back grille | 1 | |
| 17 | 92011-008072 | Condenser | 1 | |
| 18 | 41207-000048 | Top cover | 1 | |
| 19 | 41205-000217 | Support | 1 | |
| 20 | 41203-000115 | Outdoor motor supporter | 1 | |
| 21 | 22001-000147 | Outdoor motor | 1 | |
| 22 | 42004-000249 | Propeller fan | 1 | |
| 23 | 41206-000076 | Front plate | 1 | |
| 24 | 42011-000031 | Fan guard | 1 | |
| 25 | A1201-012669 | Base carton | 1 | Not shown in the Explosion view |
| 26 | A1202-000086 | Base foam | 1 | |
| 27 | A1202-000085 | Cover foam | 1 | |
| 28 | 10104-100145 | Sensor | 1 | |
| 28 | 92009-000171 | Connecting pipe assembly 1 | 1 | |
| 92009-000628 | Connecting pipe assembly 2 | 1 |
