CYT012GLSI24RL Parts ListUpdated 19 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the CYT012GLSI24RL system. This system is part of the Quantum Ultra Ceiling Cassette (CYT-24) series.

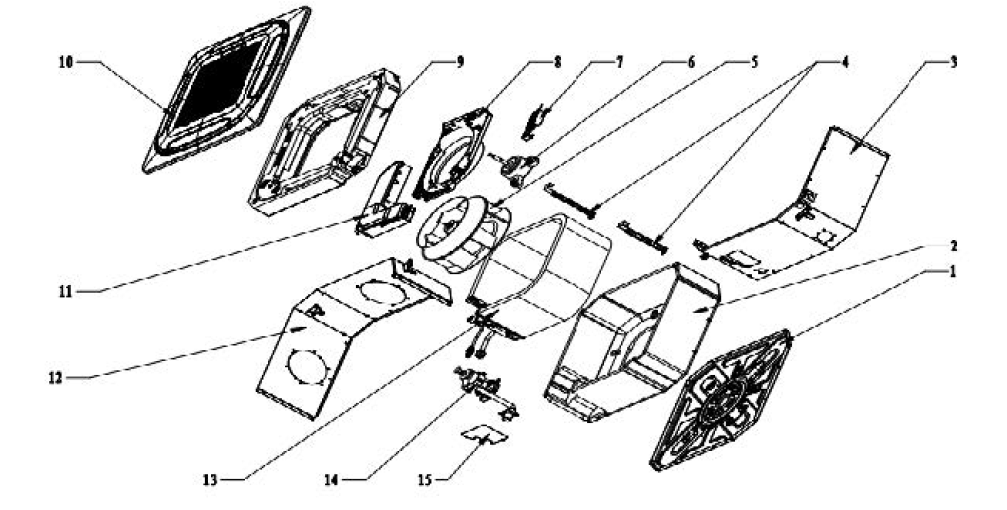

Indoor Unit
Model number: CT012GLSILCFHG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 45004-000651 | Base | 1 | |
| 2 | 45004-000653 | Base foam | 1 | |
| 3 | 45901-000150 | Dash panel | 1 | |
| 4 | H0218-110089 | Fixed plate | 1 | |
| 5 | 42004-000296 | Centrifugal fan | 1 | |
| 6 | 25001-000441 | Motor | 1 | |
| 7 | / | Wi-Fi module | 1 | |
| 8 | 45008-000455 | Wind deflector | 1 | |
| 9 | 45011-000218 | Water pans | 1 | |
| 10 | / | Pane 1 | 1 | |
| 11 | 45006-001767 | Electronic box cover | 1 | |
| 12 | 45901-000139 | Back surround plate | 1 | |
| 13 | K0304-110284 | Evaporator | 1 | |
| 14 | M0401-110007 | Water pump component | 1 | |
| 15 | 45901-000140 | Outlet tube sealing plate assembly | 1 | |
| 16 | 35004-001914 | Main PCB | 1 | Not shown in the Explosion view |
| 17 | 95004-000456 | Drain pipe | 1 | |
| 18 | 25004-000310 | Sensor | 1 | |
| 19 | / | Remote control | 1 |

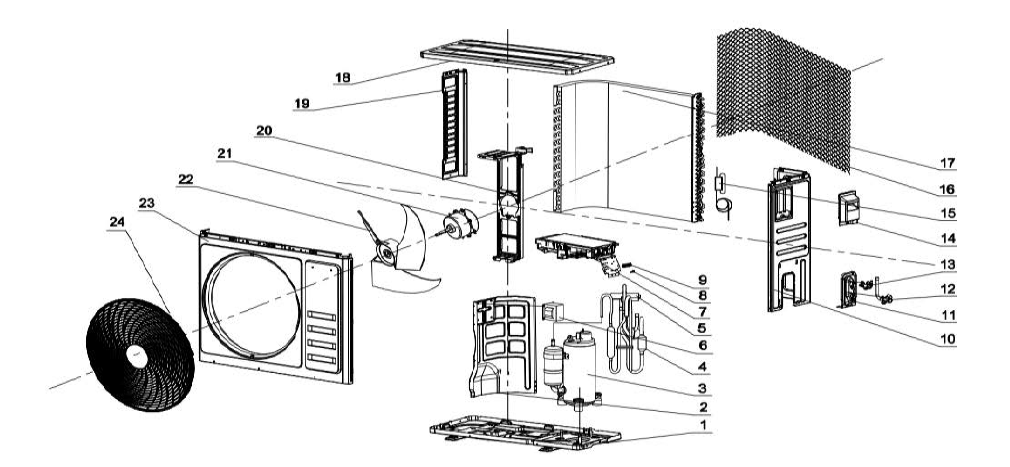

Outdoor Unit
Model number: YN012GLSI24RPG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000641 | Base | 1 | |
| 2 | 41208-001212 | Partition plate | 1 | |
| 3 | 92014-000760 | Compressor | 1 | |
| 4 | 92007-022014 | 4-way valve assembly | 1 | |
| 5 | 92008-000511 | 4-way valve | 1 | |
| 6 | / | Reactor | 1 | |
| 7 | 31201-003337 | Outdoor control assembly | 1 | |
| 8 | 42001-000036 | Clamp | 1 | |
| 9 | 11304-100117 | Terminal | 1 | |
| 10 | 41205-000086 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001041 | 3-way valve | 1 | |
| 13 | 92007-007317 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-020662 | Capillary assembly | 1 | |
| 16 | 42011-000185 | Back grille | 1 | |
| 17 | 92011-000868 | Condenser | 1 | |
| 18 | 41207-000040 | Top cover | 1 | |
| 19 | 41205-000131 | Support | 1 | |
| 20 | 41203-000047 | Outdoor motor supporter | 1 | |
| 21 | 22001-000555 | Outdoor motor | 1 | |
| 22 | 42004-000106 | Propeller fan | 1 | |
| 23 | 41206-000059 | Front plate | 1 | |
| 24 | 42011-000041 | Fan guard | 1 | |
| 25 | A2005-000536 | Base carton | 1 | Not shown in the Explosion view |
| 26 | A1202-000041 | Base foam | 1 | |
| 27 | 41213-000032 | Cover foam | 1 | |
| 28 | 92009-000180 | Connecting pipe assembly 1 | 1 | |
| 92009-000187 | Connecting pipe assembly 2 | 1 |
