Quantum Ultra Single-Way Ceiling Recessed Cassette (CYK-24) OverviewUpdated an hour ago
Introduction

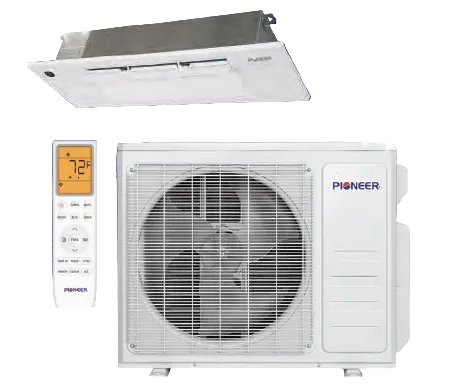

With an average 22-SEER2 rating, the Quantum Ultra Single-Way Ceiling Recessed Cassette system (CYK-24) is Energy Star certified. This system, which is perfect for wooden construction homes, uses R-454B refrigerant. .png)

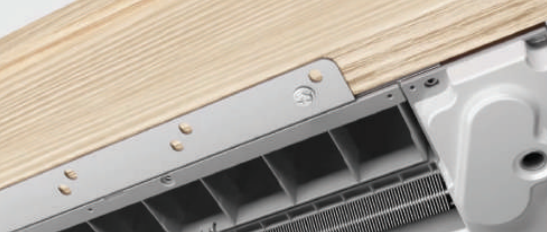

2-Way Installation Allows Ultimate Versatility
The air handler offers true flexibility, providing the ability to either hang it over or mount under the beams.

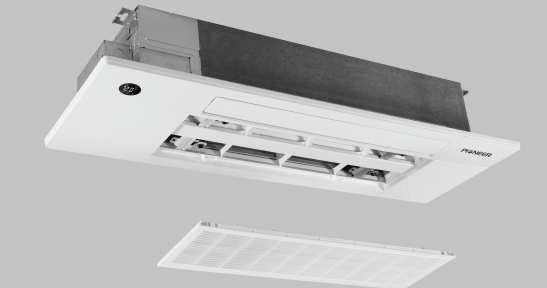

6 Foot Auto-Elevating Front Panel
With the press of a button, users can lower and suspend the front panel to their desired preference.

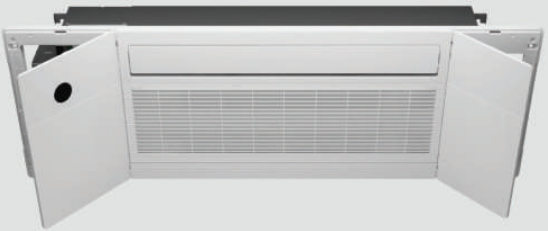

Easily Accessed Core Components
Gain access to all of the essential internals such as the control board and condensate pump, thanks to the enhanced fold-out panel design.

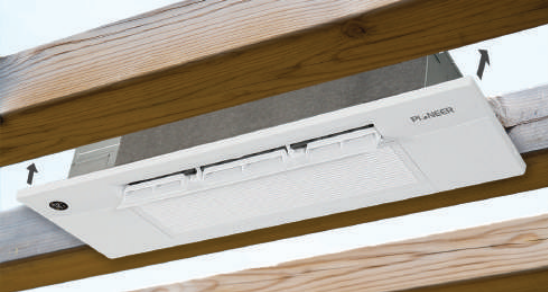

Easily Fits in Between 16-inch On-Center Joists
The sleek air handler, which has a narrow depth of less than 14 inches (356 mm), eliminates the placement restrictions associated with standard square shaped recessed cassettes.
Full System Model Numbers
CYK009GMSI24RL, CYK012GMSI24RL, and CYK018GMSI24RL
Indoor Units
CK009GMSILDFHG, CK012GMSILDFHG, and CK018GMSILDFHG
Outdoor Units
YN009GMSI24RPG, YN012GMSI24RPG, and YN018GMSI24RPG

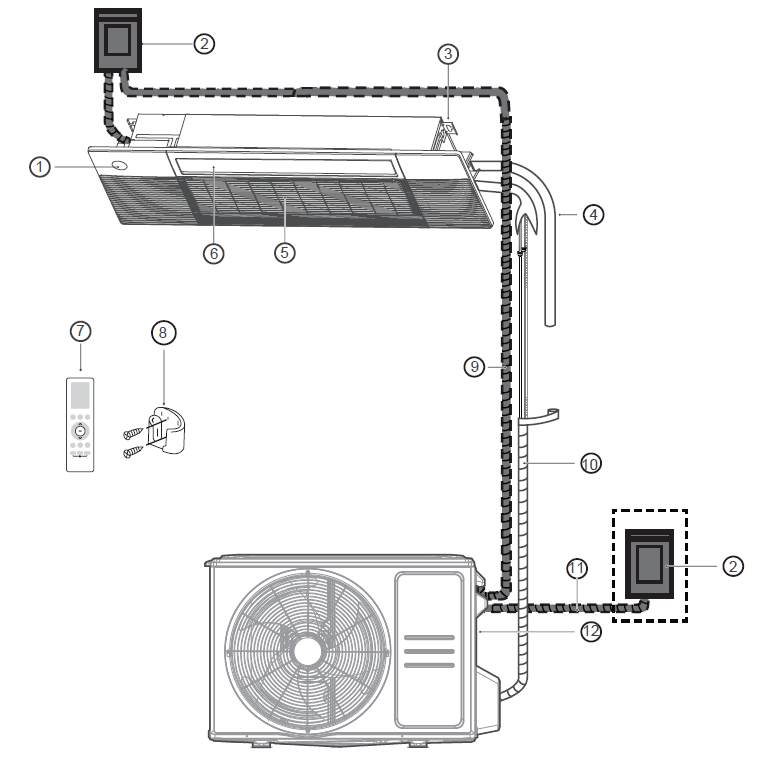

System Components
These illustrations are for explanatory purposes. The actual shape of the indoor unit may be slightly different. The shape shall prevail.
| No. | Description |
| 1 | Display panel |
| 2 | Service disconnect |
| 3 | Installation part |
| 4 | Drainpipe (purchase separately) |
| 5 | Air inlet (with the air filter in it) |
| 6 | Air outlet (Airflow louver) |
| 7 | Remote controller |
| 8 | Remote controller holder (purchase separately) |
| 9 | Connection cable (purchase separately) |
| 10 | Refrigerant piping (purchase separately) |
| 11 | Outdoor unit power cable (purchase separately) |
| 12 | Outdoor unit |
Note: Select a service disconnect meeting the requirements of the local, regional, and national codes.
Accessories & Components
The system comes with the following accessories. This a general list of the package contents. The included items may vary slightly depending on the model.
Use all of the installation parts and accessories to successfully install the system. Items that are not included with the system must be purchased separately.
| Name of Accessories | Quantity | Shape |
| Manual | 1 |  |
| Installation cardboard template | 1 |  |
| Remote controller | 1 |  |
| Cable tie | 6 |  |
| Drainpipe adaptor | 1 |  |
| Panel | 1 |  |
| Smart kit (purchase separately) | 1 |  |
| Water receiver | 1 |  |
| Rubber ring | 1 |  |
| AAA battery | 2 |  |
| Copper nut | 2 |  |
| Screw kits (ST8*50, M4*22, ST3.9*16, ST4.8*12, ST3.9*10) | 1 (8, 8, 2, 2, 3) |  |
| Wired controller (purchase separately) | 1 |  |
| Remote controller holder (purchase separately) | 1 |  |
