Dimensions & Weights for Quantum Ultra Single-Way Ceiling Recessed Cassette (CYK-24) SystemsUpdated 12 hours ago
This article provides the dimensions and weights for Quantum Ultra Single-Way Ceiling Recessed Cassette (CYK-24) systems.
Full System Model Numbers
- CYK009GMSI24RL
- CYK012GMSI24RL
- CYK018GMSI24RL

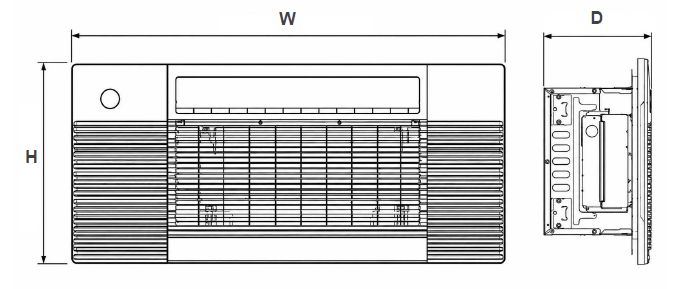

Indoor Units
| Indoor Units | |||
| Models | Dimensions | ||
| Width | Depth | Height | |
| CK009GMSILDFHG CK012GMSILDFHG CK018GMSILDFHG | 50-3/8 in | 13-1/4 in | 10 in |
| 1,279.5 mm | 336.5 mm | 254 mm | |
| Indoor Units | ||
| Models | Weights | |
| Net Unit | Shipping | |
| CK009GMSILDFHG CK012GMSILDFHG | 45.0 lbs | 82.0 lbs |
| 20.4 kg | 37.2 kg | |
| CK018GMSILDFHG | 45.5 lbs | 83.0 lbs |
| 20.6 kg | 37.6 kg | |
| Panel Grilles | |||
| Models | Dimensions | ||
| Width | Depth | Height | |
| CK009GMSILDFHG CK012GMSILDFHG CK018GMSILDFHG | 25-5/8 in | 25-5/8 in | 2-3/8 in |
| 651 mm | 651 mm | 60 mm | |
| Panel Grilles | |
| Models | Weights |
| Net Unit | |
| CK009GMSILDFHG CK012GMSILDFHG CK018GMSILDFHG | 15.0 lbs |
| 6.8 kg | |

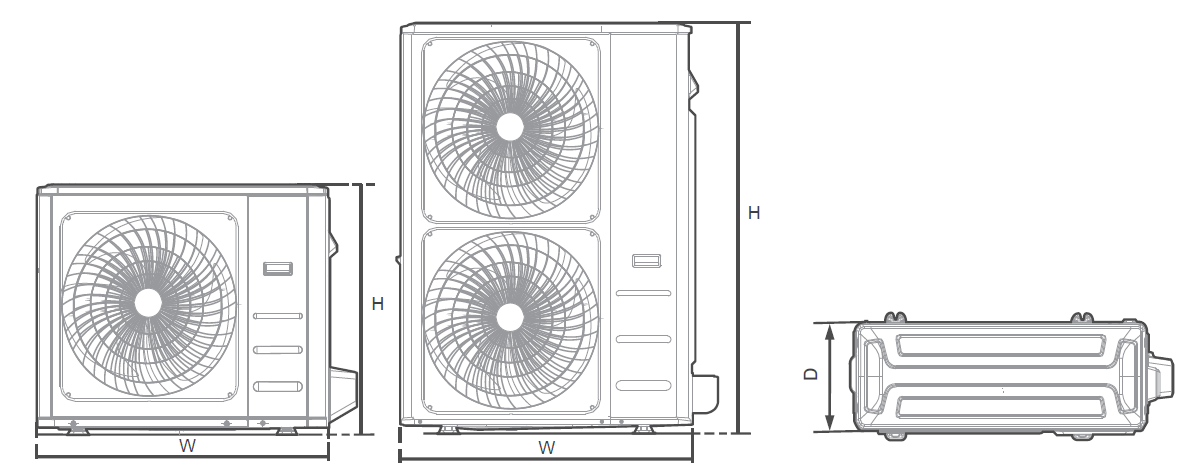

Outdoor Units
| Outdoor Units | |||
| Models | Dimensions | ||
| Width | Depth | Height | |
| YN009GMSI24RPG YN012GMSI24RPG | 30-1/8 in | 12 in | 21-7/8 in |
| 765 mm | 305 mm | 556 mm | |
| YN018GMSI24RPG | 35 in | 13-1/2 in | 26-1/2 in |
| 889 mm | 343 mm | 673 mm | |
| Outdoor Units | ||
| Models | Weights | |
| Net Unit | Shipping | |
| YN009GMSI24RPG YN012GMSI24RPG | 62.1 lbs | 67.7 lbs |
| 28.2 kg | 30.7 kg | |
| YN018GMSI24RPG | 92.6 lbs | 100.3 lbs |
| 42.0 kg | 45.5 kg | |
