Dimensions & Weights for Quantum Ultra 4-Way Ceiling Cassette (CYB-20) SystemsUpdated a day ago
This article provides the dimensions and weights for Quantum Ultra Four-Way Ceiling Cassette (CYB-20) systems.
Full System Model Numbers
- CYB036GMSI20RL
- CYB048GMSI20RL

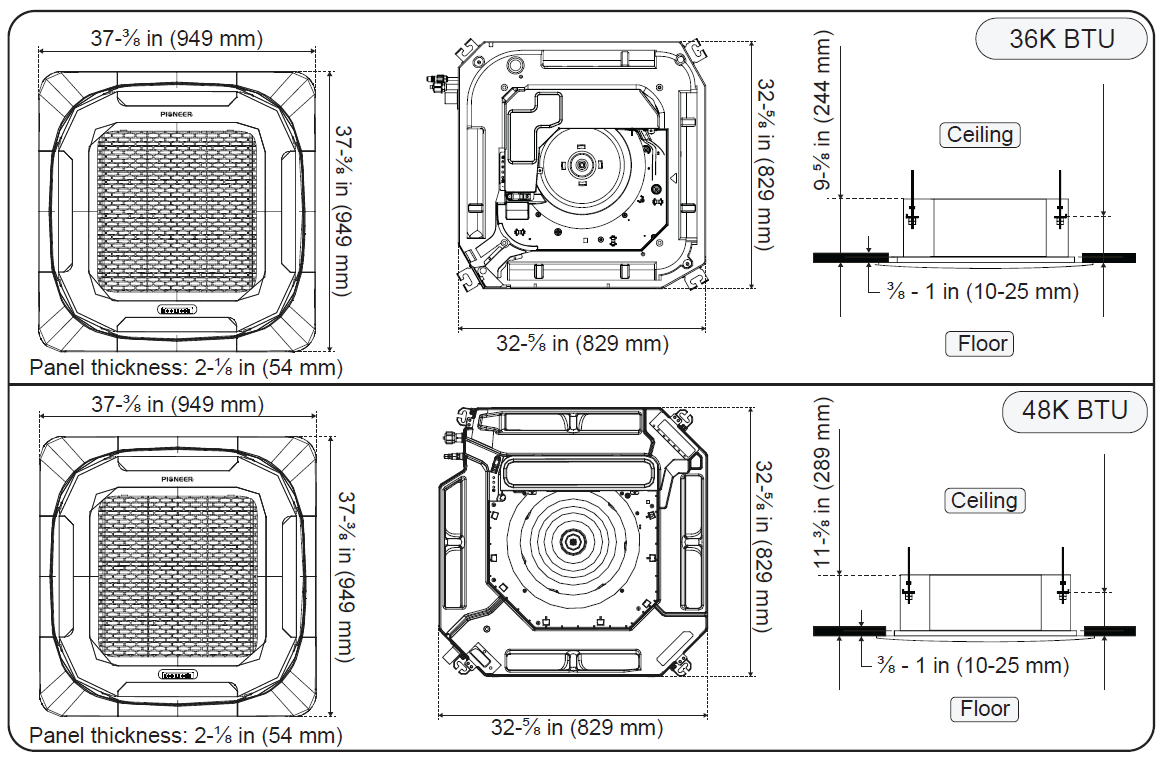

Indoor Units
| Indoor Units | |||
| Models | Dimensions | ||
| Width | Depth | Height | |
| CB036GMSILDFHG | 32-5/8 in | 32-5/8 in | 9-5/8 in |
| 829 mm | 829 mm | 244 mm | |
| CB048GMSILDFHG | 32-5/8 in | 32-5/8 in | 11-3/8 in |
| 829 mm | 829 mm | 289 mm | |
| Indoor Units | ||
| Models | Weights | |
| Net Unit | Shipping | |
| CB036GMSILDFHG | 59.3 lbs | 71.5 lbs |
| 26.9 kg | 32.4 kg | |
| CB048GMSILDFHG | 64.5 lbs | 76.1 lbs |
| 29.3 kg | 34.5 kg | |
| Panel Grilles | |||
| Models | Dimensions | ||
| Width | Depth | Height | |
| CB036GMSILDFHG CB048GMSILDFHG | 37-3/8 in | 37-3/8 in | 2-1/8 in |
| 949 mm | 949 mm | 54 mm | |
| Panel Grilles | ||
| Models | Weights | |
| Net Unit | Shipping | |
| CB036GMSILDFHG CB048GMSILDFHG | 13.2 lbs | 19.8 lbs |
| 6.0 kg | 9.0 kg | |

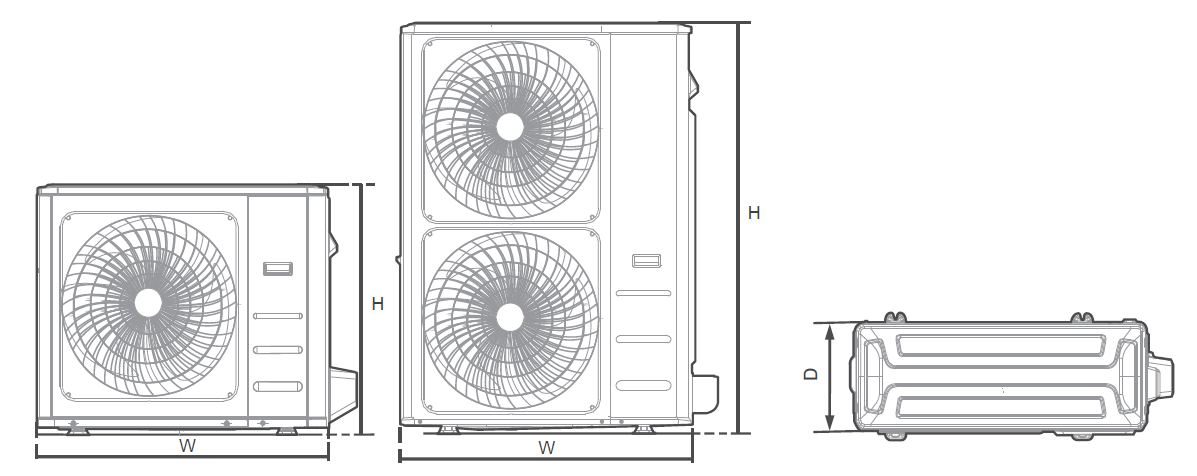

Outdoor Units
| Outdoor Units | |||
| Models | Dimensions | ||
| Width | Depth | Height | |
| YN036GMSI20RUG | 37-1/4 in | 16-1/4 in | 31-7/8 in |
| 946 mm | 413 mm | 810 mm | |
| YN048GMSI20RUG | 37-1/2 in | 16-3/8 in | 52-1/2 in |
| 952.5 mm | 416 mm | 1,333.5 mm | |
| Outdoor Units | ||
| Models | Weights | |
| Net Unit | Shipping | |
| YN036GMSI20RUG | 152.4 lbs | 162.5 lbs |
| 69.1 kg | 73.7 kg | |
| YN048GMSI20RUG | 208.8 lbs | 239.8 lbs |
| 94.7 kg | 108.8 kg | |
