Can I Order Different Lineset Lengths?Updated 3 days ago

Ordering Non-Standard Lengths


Most systems can be ordered with a variable lineset length, our options include 10, 16, 25, 33, and 50 feet. They can also be ordered without a lineset, for jobs that don't require one.

The Diamante series comes pre-packed with a 16 ft lineset which cannot be modified during purchase. This cannot be changed out as the lineset is physically packed within the 2-carton shipment.


If you need a different length, it would require purchasing either the WYS series or the WYF series which have modifiable line lengths, or a separate lineset here.

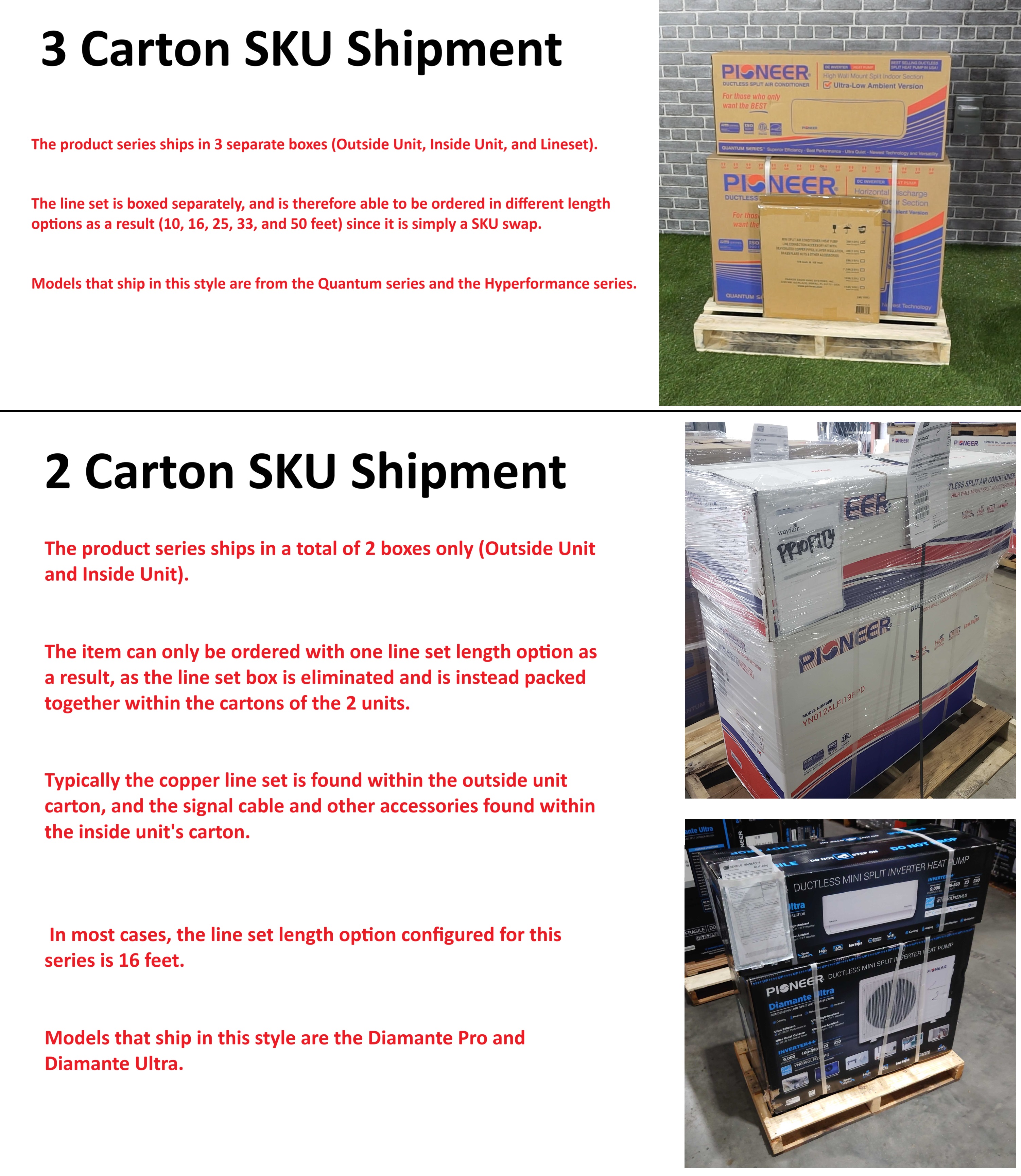

Diamante Series ships in 2 cartons, most other products ship in 3 with a separate lineset box for easy lineset length swapping.

All Light-Commercial product lines such as CYB, RYB, UYB, and FYB (Quantum series) can be ordered with a non-standard lineset length.

Central Split systems (DYR series) are sold without a lineset. It must be procured separately as they are sweat-fit type (not flare) and are a diameter that we don't offer at this time.
