Activate Heating ModeUpdated 2 hours ago
Introduction
This article explains how to put a system into Heating mode.
Heating mode utilizes the heat pump to warn the air in the room by reversing the cooling cycle. The system may take up to 10 minutes before it begins delivering heat, allowing the coil to warm up and prevent cold airflow.
Fan speed is not available. Rather, the fan will blow out air at a speed that is in proportion to how much the heat exchanger has been warmed up to.
The unit will periodically enter a defrost cycle, which is essential in order to clean frosting off the condenser and recover heat exchange capabilities. This process is normal and lasts for 2-10 minutes. Press the "ECO" button 10 times in 8 seconds to trigger a forced defrost.
While in the defrost cycle, the indoor unit's fan will cease operation. After the cycle is completed, the system will resume its normal Heating mode operation automatically.
This article is for the following units:
- Diamante Essenza (WYT-17)
- Diamante Pro (WYT-20)
- Quantum Ultra High-Wall (WYT-24)
- Quantum Hyperformance (WYT-25)
- Quantum Fresh (WYT-FA)
- Quantum Ultra Ceiling Cassette (CYT-24)
- Quantum Ultra Floor-Ceiling Flex (UYT-24)
- Quantum Ultra Ducted Ceiling Concealed (RYT-24)
- Quantum Ultra Multi-Zone
Steps
Follow these steps to activate Heating mode:

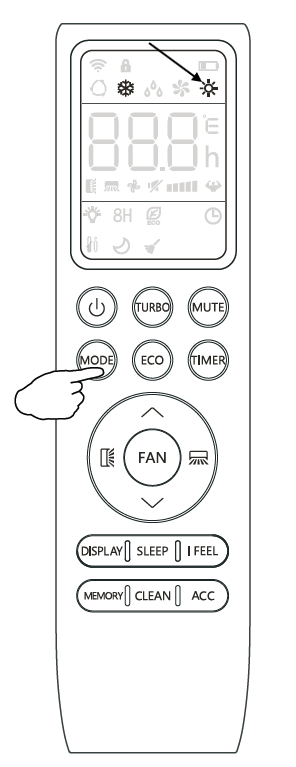

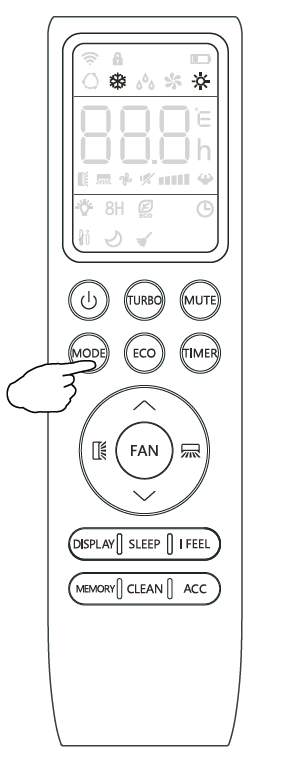

- Press the "MODE" button until the sun symbol appears on the remote controller's display.
- Use the up and down arrow buttons to set a temperature higher than that of the room.
