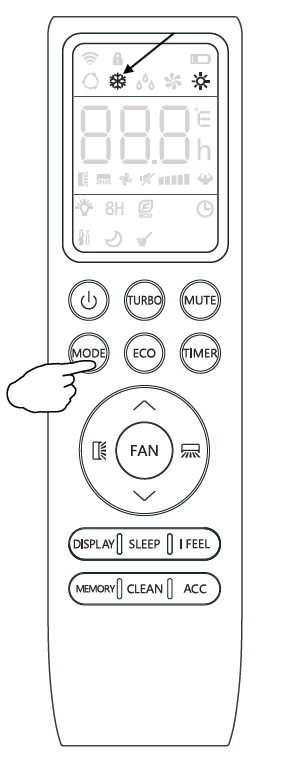

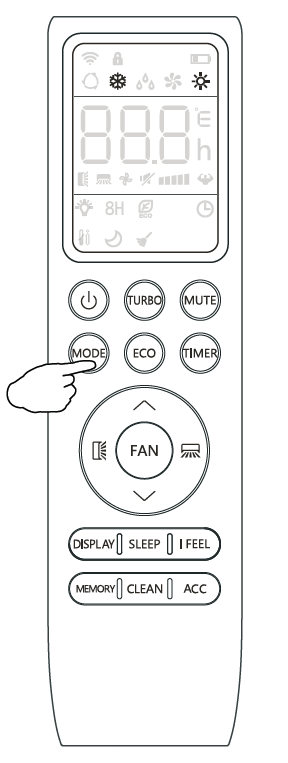

<h2 id="introduction"><u>Introduction</u></h2><p>This article explains how to put a system into Cooling mode.&#xA0;</p><p>Cooling mode utilizes the heat pump to cool the room while also reducing the humidity of the air in the room.&#xA0;</p><p>This article is for the following units:&#xA0;</p><ul><li>Diamante Essenza (WYT-17)</li><li>Diamante Pro (WYT-20)</li><li>Quantum Ultra High-Wall (WYT-24)</li><li>Quantum Hyperformance (WYT-25)</li><li>Quantum Fresh (WYT-FA)</li><li>Quantum Ultra Ceiling Cassette (CYT-24)</li><li>Quantum Ultra Floor-Ceiling Flex (UYT-24)</li><li>Quantum Ultra Ducted Ceiling Concealed (RYT-24)</li><li>Quantum Ultra Multi-Zone</li></ul><h2 id="steps"><u>Steps</u></h2><p>Follow these steps to activate Cooling mode:&#xA0;</p><ol><li>Press the &quot;MODE&quot; button until the snowflake symbol appears on the remote controller&apos;s display.&#xA0;</li><li>Use the up and down arrow buttons to set a temperature lower than that of the room.&#xA0;</li></ol><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025112116-3a03d3aa-8461-4fb1-a21a-b1575c600d3f-remote_controller_cooling_mode.png" style="width: 400px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p>

This article explains how to put a system into Cooling mode.

Activate Cooling Mode
